Description
BATCH 7 NOW AVAILABLE FOR PRE-ORDER – Batch 2 ETA 31 March 2022
Lead time: approx. 3 months
For more information, please visit our NEW SHIPPING TABLE
BETA PRODUCTION VERSION
– Full liability waiver *may* be required of end user prior to shipment

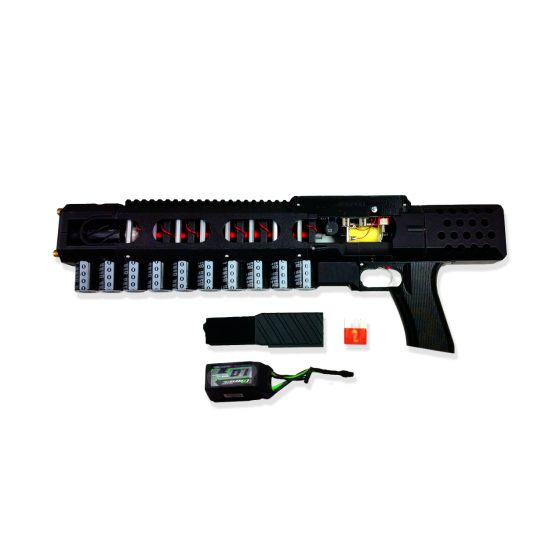

– Unit ships with one (1) EMG-01B gun, one (1) 6S LiPo battery, one (1) 18-round magazine (MG18), as well as one (1) 40A fuse.
– CHARGER SOLD SEPARATELY
– AMMUNITION SOLD SEPARATELY
– Actual unit is black in color.
– Now with upgraded rate of fire (540 rpm!)

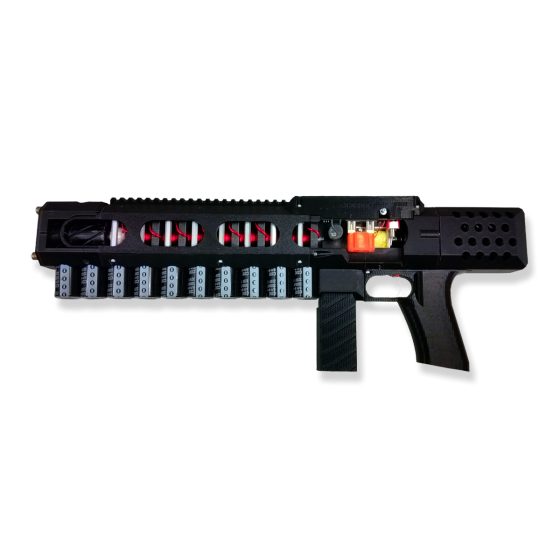

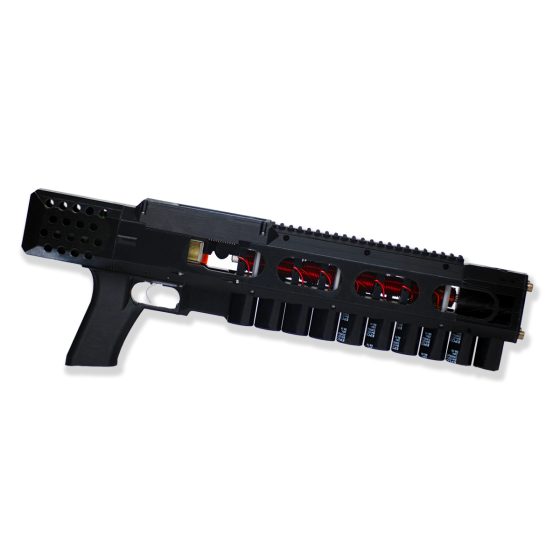

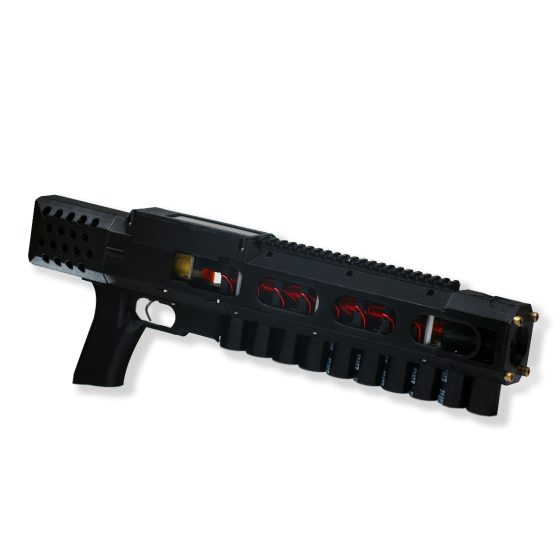

The Arcflash Labs EMG-01B (Electro-Magnetic Gun – 01 Beta) is an 8 stage low voltage capacitor augmented fully automatic coilgun.
It features 8 stages controlled by a nanosecond-precise microcontroller which allows for firing up to 8 rounds per second at >45m/s.
The EMG-01B is configured to ONLY fire 0.25×0.75” steel projectiles (dowel pins). Arcflash Labs recommends the use of 2575 Magnetic Armatures, but any 0.25×0.75” steel dowel pin should work.
The EMG-01B is shipped standard with a high capacity 18 round magazine. The gun is also shipped standard with a 6S Lithium Polymer battery (charger sold separately) which can provide power for over 100 shots before needing to recharge.
Accelerator Specifications
| Primary power source | 1x 6S LiPo – 25.2V |
| Power supply | Proprietary (2,000W) |
| Capacitors | 10x 33mF LV electrolytic |
| Switches | 8x IGBT |
| Projectile | 0.25×0.75” carbon steel, 4.6g |
| Capacity | 18 rounds (standard) |
| Rate of fire | 9.0 rounds/sec |
| Muzzle velocity | 46 m/s |
| Muzzle energy | 4.87J |
| Efficiency | 6.7% |

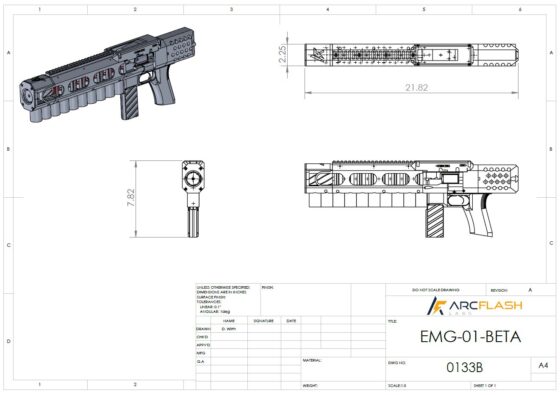

Physical Dimensions
| Barrel length | 10.0” |
| Bore | 0.25” |
| Physical Dimensions | 22.0” x 8.0” x 2.25” |
| Overall Weight (unloaded, no battery) | 4.8 lbs |
Documentation: EMG-01B Manual_v3
Device exempt from FCC certification under section 15.103-h: (h) Digital devices in which both the highest frequency generated and the highest frequency used are less than 1.705 MHz and which do not operate from the AC power lines or contain provisions for operation while connected to the AC power lines. Digital devices that include, or make provision for the use of, battery eliminators, AC adaptors or battery chargers which permit operation while charging or that connect to the AC power lines indirectly, obtaining their power through another device which is connected to the AC power lines, do not fall under this exemption. For more information:
