EMG-02

$200.00

DEPOSIT ONLY
$2,898 + shipping will be invoiced prior to shipment
15 ft-lb/11kW full automatic Gauss accelerator
(Alpha) Batch 2

SKU: EMG-02 Categories: ,

Description

NOW AVAILABLE FOR PRE-ORDER WITH A $200 DEPOSIT
An invoice for the remaining balance ($2,898 + shipping) will be billed to the customer prior to shipment.
A $200 deposit secures your place in the current batch. For more details on the current production status please visit: https://www.arcflashlabs.com/pre-orders
Units will be shipped out in the order they are received.
Shipping is UPS Adult Signature Required- typically $80-$150 depending on location. Additional charges may apply for customers shipping to Hawaii.



ALPHA PRODUCTION VERSION
– Full liability waiver *may* be required of end user prior to shipment
– Unit ships with one (1) EMG-02 gun, one (1) hard carrying case, one (1) battery pack, one (1) battery charger, one (1) 15-round magazine (MG15A), as well as ten (10) 51634 armatures.

The Arcflash Labs EMG-02 (Electro-Magnetic Gun – 02) is a 10 stage medium voltage capacitor augmented fully automatic coilgun.

It features 8 computer optically controlled stages and 2 booster stages, allowing the accelerator to fire up to 13 rounds per second (burst) at velocities up to 75m/s.

The EMG-02 is configured to fire variable caliber steel armatures (dowel pins) between 6-8mm in diameter and between 19-22mm in length.  Arcflash Labs recommends the use of 51634, 51678, or 2575 Magnetic Armatures, but any ferromagnetic dowel pin (between 6-8mm in diameter and between 19-22mm in length) should work.

The EMG-02 is shipped with a single stacked 15 round (MG15A) magazine, and can also accept EMG-01B magazines (MG18), as well as the larger MG15XL magazine.  The gun also ships with a 15S Lithium-Ion (drill) battery pack (and associated charger) which can provide power for over 300 shots before needing to recharge.

Additional batteries can be purchased from many retail or online establishments. The EMG-02 should accept any 60v flexvolt compatible battery. One example of a 60v EMG-02 compatible battery can be found on Amazon.

Accelerator Specifications

Primary power source 1x 15S LiIon – 63V
Power supply Proprietary (11kW)
Capacitors 1x MV electrolytic
Switches Proprietary (IGBT-based)
Projectile variable caliber, alloy steel, 4.6-8.5g
Magazine Capacity 15-18 rounds
Battery Capacity Up to 300 shots per battery
Rate of fire 8.0 rounds/sec (auto) 13 rounds/sec (burst)
Muzzle velocity Up to 75 m/s
Muzzle energy Up to 20J
Efficiency 4.45%

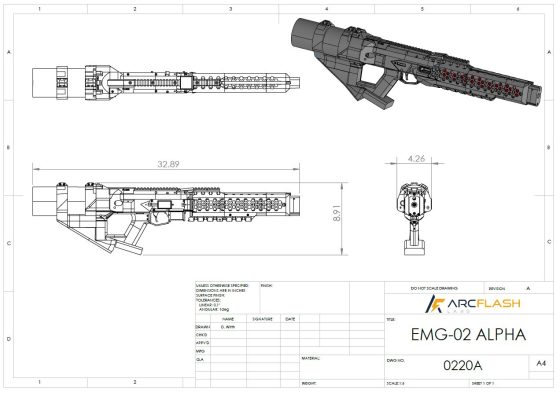

Physical Dimensions

Barrel length 13.0”
Bore 0.32”
Physical Dimensions 32.5” x 9.0” x 4.5”
Overall Weight (unloaded, no battery) 9.7 lbs

Documentation: EMG-02 Manual_v2

Device exempt from FCC certification under section 15.103-h:  (h) Digital devices in which both the highest frequency generated and the highest frequency used are less than 1.705 MHz and which do not operate from the AC power lines or contain provisions for operation while connected to the AC power lines. Digital devices that include, or make provision for the use of, battery eliminators, AC adaptors or battery chargers which permit operation while charging or that connect to the AC power lines indirectly, obtaining their power through another device which is connected to the AC power lines, do not fall under this exemption.  For more information:
https://www.gpo.gov/fdsys/pkg/CFR-2010-title47-vol1/pdf/CFR-2010-title47-vol1-sec15-101.pdf

Additional information

Weight 180 oz
Dimensions 38 × 16 × 7 in
Lead Time

Lead time on backorder: 4-6 months.

Shipping restrictions

Cannot ship to the following states: Delaware, Illinois, New Jersey, Rhode Island, District of Columbia. The following counties: King County (WA). The following cities: Seaside (CA), Bridgeport (CT), Stratford (CT), New York (NY), Brooklyn (NY), Bronx (NY), Staten Island (NY), Queens (NY), Glen Oaks (NY), Floral Park (NY), Yonkers (NY), Buffalo (NY), Rochester (NY) Philadelphia (PA), York (PA).
If you are a resident of a state which is highly restricted but you are outside the restricted city or county in such a state, please contact us before ordering.

Shipping cost

Approx. $150 due to high weight, additional insurance and signature verification. Dependent on location.
